Fiber Optic Set Of Tools F

Fiber Optic Set Of Tools FTTH Splice Fibre Stripper + FC-6S Fiber Cleaver And Tools Bag Kit

Brand :Xingcheng
Item:Fiber Cleaver
Weight:1450g
Size:Approx. 190*90*30mm
Product description: Fiber Optic Set Of Tools FTTH Splice Fibre Stripper + FC-6S Fiber Cleaver And Tools Bag Kit
INQUIRY

0 ₫

Mô tả

Mô tả

Portable optical power meter is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fiber network. It is a compact device with backlight switch and auto power on-off ability. Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition, it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same time.

Specification:

Wavelength(nm): 800~1700nm

Detector: InGaAs

Measurement Range (dBm): -70~+10

Uncertainty: ±0.2(5%)

Calibrated Wavelength(nm): 850,980,1300,1310,1490,1550

Resolution(dB): Linear indication: 0.1% Loharithmic indication: 0.01dBm

Optical Connector: FC/ Universal 2.5mm adaptor

Power Supply: Alkaline Battery(3 AA 1.5V batteries)

Battery Operating Time: 240 h with 1.5V Battery(3)

Operating Temperature: -10 ~ +60C

Storage Temperature: -25 ~ +70C

Relative Humidity: 0 to 95% (non-condensing)

Dimension(mm): 190×100×48

Weight: 600g

Fiber Cleaver FC-6S Features and Functions :

high quality fiber cutting knife (recommended for FTTH cold welding, hot melt connection is not recommended for the use of this paragraph). Simple operation; single core fiber for single mode or multimode cutting; 12 cutting end face; blade long life; adjust the peeling length is: 5~20mm; technical specifications: fiber size: 125um; skin diameter: 250~900um.

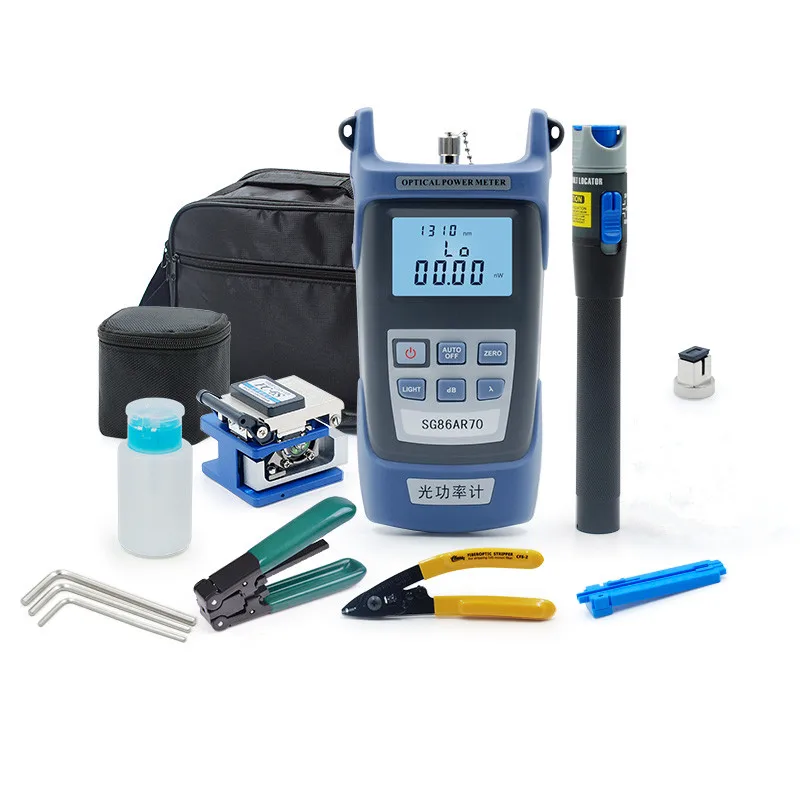

Package included:

1 x Optical Power Meter with SC FC ST Connector
1 x FC-6S Fiber Cleaver
1 x Visual Fault Locator 1mw
1 x CFS-2 Fiber Optic Stripper
1 x FTTH Drop Cable Stripper
1 x Alcohol Bottle
1 x Cleaver Stripping Guide Bar
1 x Cleaver Adjusting Tool
1 x Ceramic Sleeves for VFL
1 x Cleaver Bag
1 x For VFL Bag
1 x Toolkit Bag
