Huawei Outdoor Access Point AP6610DN-AGN

Cung cấp thiết bị Huawei Outdoor Access Point AP6610DN-AGN.
11n, Enhanced AP Outdoor, 2×2 Double Frequency, SFP.
Hàng chính hãng 100%, bảo hành 1 năm.

Mô tả

Mô tả

Mô tả tổng quan Huawei Outdoor Access Point AP6610DN-AGN

Huawei AP6610DN-AGN performance-enhanced 802.11n outdoor APs provide dual-band connectivity for wireless throughput up to 600 Mbit/s. Industrial-grade protection includes a dustproof and waterproof hardened metal casing that is high- and low-temperature resistant. These APs are designed for challenging outdoor or industrial high-demand/density environments, such as pedestrian areas and factories. They also work well in bridge and wireless backhaul applications for wireless harbor, video surveillance, and train or ground vehicle scenarios.

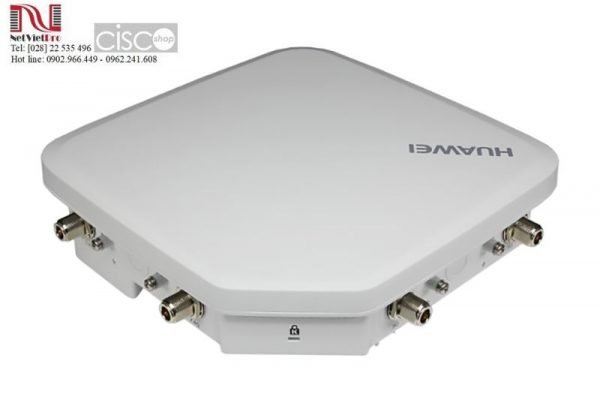

Huawei Outdoor Access Point AP6610DN-AGN

Thông tin kỹ thuật Huawei Outdoor Wireless Access Point AP6610DN-AGN

AP6610DN-AGN Specifications
Technical
Dimensions (H × W × D)	3.2 in. x 10 in. x 10 in. (83 mm x 255 mm x 255 mm)
Weight	5.8 lb. (2.65 kg)
System memory	128 MB DDR2 32 MB Flash
Power
Power input	AC, 90V to 264V
Maximum power consumption	30W Note: Maximum power consumption depends on local laws
Environment
Operating temperature	-40oF to 140oF (-40oC to 60oC)
Storage temperature	-40oF to 158oF (-40oC to 70oC)
Humidity	0% to 100% (Non-condensing)
Waterproof grade	IP67
Altitude	196.8 ft. to 16,404.1 ft. (-60m to 5,000m)
Radio
Antenna Type	Dual-polarization or common outdoor
Maximum Number of Concurrent Users	128
Maximum Transmit Power	2.4 GHz: 27 dBm 5 GHz: 24 dBm You can adjust the transmit power to the maximum of 20 dB in 1 dB steps. Note: Actual transmit power depends on local laws and regulations.
Maximum Number of Non-overlapping Channels	2.4 GHz 802.11b/g ·20 MHz: 3 802.11n ·20 MHz: 3 ·40 MHz: 1 5 GHz 802.11a ·20 MHz: 5 802.11n ·20 MHz: 5 ·40 MHz: 2 Note: The number of non-overlapping channels allowed varies in different countries.
Channel Rates	802.11b: 1, 2, 5.5, and 11 Mbit/s
	802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
	802.11n data rate: (2.4 GHz and 5 GHz)
	GI2 = 800 ns			GI = 400 ns
	20 MHz (Mbit/s)	40 MHz (Mbit/s)		20 MHz (Mbit/s)		40 MHz (Mbit/s)
	6.5 @ MCS10	13.5 @ MCS0		7.2 @ MCS0		15 @ MCS0
	13 @ MCS1	27 @ MCS1		14.4 @ MCS1		30 @ MCS1
	19.5 @ MCS2	40.5 @ MCS2		21.7 @ MCS2		45 @ MCS2
	26 @ MCS3	54 @ MCS3		28.9 @ MCS3		60 @ MCS3
	39 @ MCS4	81 @ MCS4		43.3 @ MCS4		90 @ MCS4
	52 @ MCS5	108 @ MCS5		57.8 @ MCS5		120 @ MCS5
	58.5 @ MCS6	121.5 @ MCS6		65 @ MCS6		135 @ MCS6
	65 @ MCS7	135 @ MCS7		72.2 @ MCS7		150 @ MCS7
	13 @ MCS8	27 @ MCS8		14.4 @ MCS8		30 @ MCS8
	26 @ MCS9	54 @ MCS9		28.9 @ MCS9		60 @ MCS9
	39 @ MCS10	81 @ MCS10		43.3 @ MCS10		90 @ MCS10
	52 @ MCS11	108 @ MCS11		57.8 @ MCS11		120 @ MCS11
	78 @ MCS12	162 @ MCS12		86.7 @ MCS12		180 @ MCS12
	104 @ MCS13	216 @ MCS13		115.6 @ MCS13		240 @ MCS13
	117 @ MCS14	243 @ MCS14		130 @ MCS14		270 @ MCS14
	130 @ MCS15	270 @ MCS15		144.4 @ MCS15		300 @ MCS15
	Note: Modulation Coding Scheme (MCS) index: Determines the spatial flow quantity, modulation, coding rate, and data rate GI Indicates the period in nanoseconds the radio listens between packets
Receiver Sensitivity	2.4 GHz 802.11b (CCK) ·-97 dBm @ 1 Mbit/s ·-92 dBm @ 2 Mbit/s ·-92 dBm @ 5.5 Mbit/s ·-90 dBm @ 11 Mbit/ss 5 GHz 802.11a (Non-HT20) ·-90 dBm @ 6 Mbit/s		2.4 GHz 802.11g (Non-HT20) ·-92 dBm @ 6 Mbit/s ·-91 dBm @ 9 Mbit/s ·-90 dBm @ 12 Mbit/s ·-87 dBm @ 18 Mbit/s ·-83 dBm @ 24 Mbit/s ·-80 dBm @ 36 Mbit/s ·-76 dBm @ 48 Mbit/s ·-74 dBm @ 54 Mbit/s		2.4 GHz 802.11n (HT20) ·-92 dBm @ MCS0/8 ·-89 dBm @ MCS1/9 ·-86 dBm @ MCS2/10 ·-82 dBm @ MCS3/11 ·-79 dBm @ MCS4/12 ·-74 dBm @ MCS5/13 ·-73 dBm @ MCS6/14 ·-71 dBm @ MCS7/15		2.4 GHz 802.11n (HT40) ·-89 dBm @ MCS0/8 ·-86 dBm @ MCS1/9 ·-83 dBm @ MCS2/10 ·-79 dBm @ MCS3/11 ·-76 dBm @ MCS4/12 ·-72 dBm @ MCS5/13 ·-70 dBm @ MCS6/14 ·-68 dBm @ MCS7/15
	5 GHz 802.11a (Non-HT20) ·-90 dBm @ 6 Mbit/s ·-89 dBm @ 9 Mbit/s ·-86 dBm @ 12 Mbit/s ·-84 dBm @ 18 Mbit/s ·-81 dBm @ 24 Mbit/s ·-77 dBm @ 36 Mbit/s ·-72 dBm @ 48 Mbit/s ·-71 dBm @ 54 Mbit/s		5 GHz 802.11n (HT20) ·-84 dBm @ MCS0/8 ·-81 dBm @ MCS1/9 ·-79 dBm @ MCS2/10 ·-76 dBm @ MCS3/11 ·-72 dBm @ MCS4/12 ·-68 dBm @ MCS5/13 ·-67 dBm @ MCS6/14 ·-67 dBm @ MCS7/15		5 GHz 802.11n (HT40) ·-81 dBm @ MCS0/8 ·-78 dBm @ MCS1/9 ·-76 dBm @ MCS2/10 ·-73 dBm @ MCS3/11 ·-69 dBm @ MCS4/12 ·-65 dBm @ MCS5/13 ·-64 dBm @ MCS6/14 ·-64 dBm @ MCS7/15
