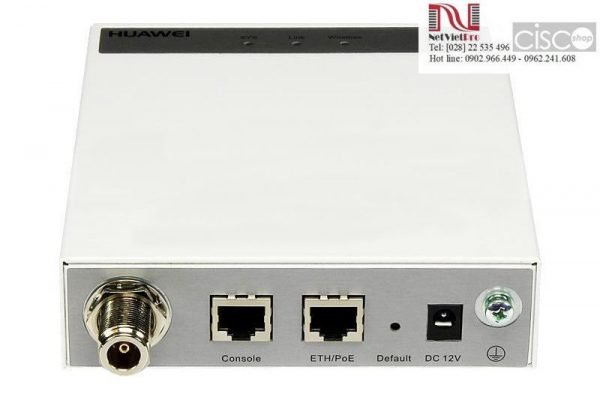

Huawei Indoor Wireless Access Point AP6310SN-GN

Cung cấp thiết bị Huawei Indoor Access Points AP6310SN-GN.
11n, Distributed AP Indoor, Single Frequency, No AC/DC adapter.
Hàng chính hãng 100%, bảo hành 1 năm.

Mô tả

Mô tả

Mô tả tổng quan Huawei Indoor Access Point AP6310SN-GN

Huawei Wireless Access Point AP6310SN-GN is a signal band network product which designed for a very cost-efficient indoor use, operates on the 2.4 GHz frequency, supports 802.11b/g/n and covers a very wide area. And finally, the key capability, it connects to external antenna systems, such as GAS or distributed antenna systems of Huawei, carrier-provided antenna system-like 2G/3G antenna system which may already be operated in a hotel environment and it can operated and connect to a cable TV distributed antenna system, which again you may find in hotel environment.

Huawei Indoor Wireless Access Point AP6310SN-GN

Thông tin kỹ thuật Huawei Indoor Wireless Access Point AP6310SN-GN

AP6310SN-GN Specifications
Technical
Dimensions (H × W × D)	1.3 in. x 5.1 in. x 5.9 in. (35 mm x 130 mm x 150 mm)
Weight	1.3 lb. (0.6 kg)
System memory	128 MB DDR2 32 MB flash memory
Power
Power input	DC 12V ±10% POE power: -48V DC PoE function complies with IEEE 802.3af and 802.3at
Maximum power consumption	8.3W Note: Maximum power consumption depends on local laws
Environment
Operating temperature	14^oF to 122^oF (-10^oC to 50^oC)
Storage temperature	-40^oF to 158^oF (-40^oC to 70^oC)
Humidity	5% to 95% (Non-condensing)
Waterproof grade	IP31
Altitude	196.8 ft. to 16,404.1 ft. (-60m to 5,000m)
Radio
Radio Connector Type	N-type (Female)
Antenna Type	Depends on the type of antennas in the indoor antenna system
Maximum Number of Concurrent Users	128
Maximum Transmit Power	27 dBm You can adjust the transmit power to the maximum of 20 dB in 1 dB steps. Note: Actual transmit power depends on local laws and regulations.
Maximum Number of Non-overlapping Channels	802.11b/g ·20 MHz: 3 802.11n ·20 MHz: 3 ·40 MHz: 1 Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status
Channel Rates	802.11b: 1, 2, 5.5, and 11 Mbit/s
	802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
	802.11n data rate: 2.4 GHz
	GI2 = 800 ns			GI = 400 ns
	20 MHz (Mbit/s)	40 MHz (Mbit/s)		20 MHz (Mbit/s)	40 MHz (Mbit/s)
	6.5 @ MCS10	13.5 @ MCS0		7.2 @ MCS0	15 @ MCS0
	13 @ MCS1	27 @ MCS1		14.4 @ MCS1	30 @ MCS1
	19.5 @ MCS2	40.5 @ MCS2		21.7 @ MCS2	45 @ MCS2
	26 @ MCS3	54 @ MCS3		28.9 @ MCS3	60 @ MCS3
	39 @ MCS4	81 @ MCS4		43.3 @ MCS4	90 @ MCS4
	52 @ MCS5	108 @ MCS5		57.8 @ MCS5	120 @ MCS5
	58.5 @ MCS6	121.5 @ MCS6		65 @ MCS6	135 @ MCS6
	65 @ MCS7	135 @ MCS7		72.2 @ MCS7	150 @ MCS7
	Note: Modulation Coding Scheme (MCS) index: Determines the spatial flow quantity, modulation, coding rate, and data rate GI Indicates the period in nanoseconds the radio listens between packets
Receiver Sensitivity	802.11b (CCK) ·-97 dBm @ 1 Mbit/s ·-92 dBm @ 2 Mbit/s ·-92 dBm @ 5.5 Mbit/s ·-90 dBm @ 11 Mbit/ss		802.11g (Non-HT20) ·-92 dBm @ 6 Mbit/s ·-91 dBm @ 9 Mbit/s ·-90 dBm @ 12 Mbit/s ·-87 dBm @ 18 Mbit/s ·-83 dBm @ 24 Mbit/s ·-80 dBm @ 36 Mbit/s ·-76 dBm @ 48 Mbit/s ·-74 dBm @ 54 Mbit/s
	802.11n (HT20) ·-92 dBm @ MCS0/8 ·-89 dBm @ MCS1/9 ·-86 dBm @ MCS2/10 ·-82 dBm @ MCS3/11 ·-79 dBm @ MCS4/12 ·-74 dBm @ MCS5/13 ·-73 dBm @ MCS6/14 ·-71 dBm @ MCS7/15		802.11n (HT40) ·-89 dBm @ MCS0/8 ·-86 dBm @ MCS1/9 ·-83 dBm @ MCS2/10 ·-79 dBm @ MCS3/11 ·-76 dBm @ MCS4/12 ·-72 dBm @ MCS5/13 ·-70 dBm @ MCS6/14 -68 dBm @ MCS7/15
