Huawei Indoor Wireless Access Point AP5130DN

Cung cấp thiết bị Huawei Indoor Access Points AP5130DN.
11ac, General AP Indoor, 3×3 Double Frequency, External Antenna, No AC/DC adapter.
Hàng chính hãng 100%, bảo hành 1 năm.

Mô tả

Mô tả

Mô tả tổng quan Huawei IndoorAccess Point AP5130DN

Huawei AP5130DN Access Point delivers high-capacity, secure WLAN access services for dense, wide-area user environments such as offices, airports, trains, and sports stadiums. The AP5130DN is Huawei’s latest-generation 802.11ac Wave 1 access points. It also delivers fast, reliable wireless access services 3 x 3 MIMO technology and Removable RP-SMA antenna to aggregate wireless data rates up to 1.75 Gbit/s, WMM and priority mapping on the air interface and wired interface; legacy 802.11a/b/g/n client support ensures seamless user connections. Integrated antennas provide omnidirectional coverage without coverage holes and PoE power supply in compliance with IEEE 802.3af/at simplifies AP installation and supports Plug-and-Play (PnP) in Fit AP mode.

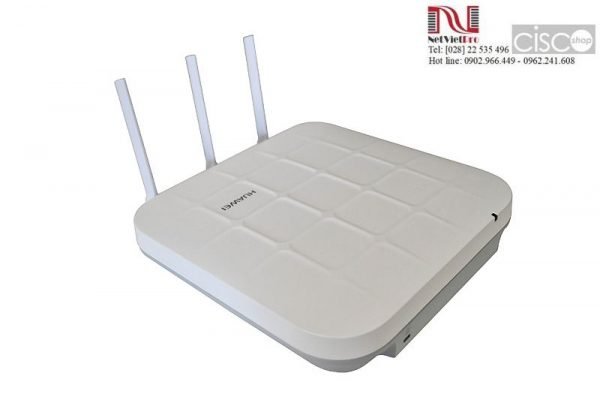

Huawei Indoor Wireless Access Point AP5130DN

Thông tin kỹ thuật Huawei Indoor Wireless Access Point AP5130DN

AP5130DN Specifications
Technical
Dimensions (H × W × D)	8.7 in. x 8.7 in. x 2.1 in. (220 mm x 220 mm x 53 mm)
Weight	2.2 lb. (1 kg)
System memory	256 MB DDR2 32 MB flash memory
Power
Power input	DC 12V ± 10% PoE Power: -48V DC PoE function in compliance with IEEE 802.3af and 802.3at
Maximum power consumption	12.95W Note: Actual maximum power consumption depends on local laws and regulations.
Environment
Operating temperature	14^oF to 122^oF (-10^oC to 50^oC)
Storage temperature	-40^oF to 158^oF (-40^oC to 70^oC)
Humidity	5% to 95% (Non-condensing)
Waterproof grade	IP41
Altitude	-196.9 ft. to 13,123.4 ft. (-60m to 5,000m)
Radio specifications
Antenna Type	Built-in
Antenna Gain	2.4G: 3.5 dBi 5G: 4 dBi
Maximum Number of Concurrent Users	≤ 256
Maximum Transmit Power	20 dBm Note: You can adjust the transmit power from the maximum to 20 dB in 1 dB increments. Actual transmit power depends on local laws and regulations
Maximum Number of Non-overlapping Channels	2.4 GHz 802.11b/g 20 MHz: 3 802.11n 20 MHz: 3 40 MHz: 1		5 GHz 802.11a 20 MHz: 5 802.11n 20 MHz: 5 40 MHz: 2 802.11ac 20 MHz: 5 40 MHz: 2 80 MHz: 1
Channel Rates	802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n data rate (2.4 GHz and 5 GHz): 6.5 Mbit/s to 600 Mbit/s 802.11ac data rate (5 GHz): 6.5 Mbit/s to 1,300 Mbit/s
Receiver Sensitivity	2.4 GHz 802.11b (CCK) -96 dBm @ 1 Mbit/s -91 dBm @ 2 Mbit/s -92 dBm @ 5.5 Mbit/s -88 dBm @ 11 Mbit/s	2.4 GHz 802.11g (non-HT20) -91 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -89 dBm @ 12 Mbit/s -86 dBm @ 18 Mbit/s -83 dBm @ 24 Mbit/s -80 dBm @ 36 Mbit/s -76 dBm @ 48 Mbit/s -74 dBm @ 54 Mbit/s		2.4 GHz 802.11n (HT20) -91 dBm @ MCS0 -88 dBm @ MCS1 -86 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -74 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -88 dBm @ MCS9 -86 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15	2.4 GHz 802.11n (HT40) -88 dBm @ MCS0 -85 dBm @ MCS1 -83 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -85 dBm @ MCS9 -82 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15
	5 GHz 802.11a (non-HT20) -89 dBm @ 6 Mbit/s -88 dBm @ 9 Mbit/s -86 dBm @ 12 Mbit/s -83 dBm @ 18 Mbit/s -80 dBm @ 24 Mbit/s -77 dBm @ 36 Mbit/s -73 dBm @ 48 Mbit/s -71 dBm @ 54 Mbit/s			5 GHz 802.11n (HT20) -90 dBm @ MCS0 -85 dBm @ MCS1 -84 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -88 dBm @ MCS9 -85 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15	5 GHz 802.11n (HT40) -85 dBm @ MCS0 -82 dBm @ MCS1 -79 dBm @ MCS2 -75 dBm @ MCS3 -72 dBm @ MCS4 -68 dBm @ MCS5 -66 dBm @ MCS6 -64 dBm @ MCS7 -87 dBm @ MCS8 -84 dBm @ MCS9 -81 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15
	5 GHz 802.11ac (VTH20) -89 dBm @ MCS0NSS1 -86 dBm @ MCS1NSS1 -84 dBm @ MCS2NSS1 -80 dBm @ MCS3NSS1 -77 dBm @ MCS4NSS1 -73 dBm @ MCS5NSS1 -71 dBm @ MCS6NSS1 -70 dBm @ MCS7NSS1 -65 dBm @ MCS8NSS1			5 GHz 802.11ac (VTH40) -85 dBm @ MCS0NSS1 -83 dBm @ MCS1NSS1 -78 dBm @ MCS2NSS1 -77 dBm @ MCS3NSS1 -73 dBm @ MCS4NSS1 -69 dBm @ MCS5NSS1 -68 dBm @ MCS6NSS1 -67 dBm @ MCS7NSS1 -66 dBm @ MCS8NSS1 -60 dBm @ MCS9NSS1	5 GHz 802.11ac (VTH80) -82 dBm @ MCS0NSS1 -79 dBm @ MCS1NSS1 -77 dBm @ MCS2NSS1 -74 dBm @ MCS3NSS1 -73 dBm @ MCS4NSS1 -66 dBm @ MCS5NSS1 -65 dBm @ MCS6NSS1 -64 dBm @ MCS7NSS1 -59 dBm @ MCS8NSS1 -57 dBm @ MCS9NSS1
