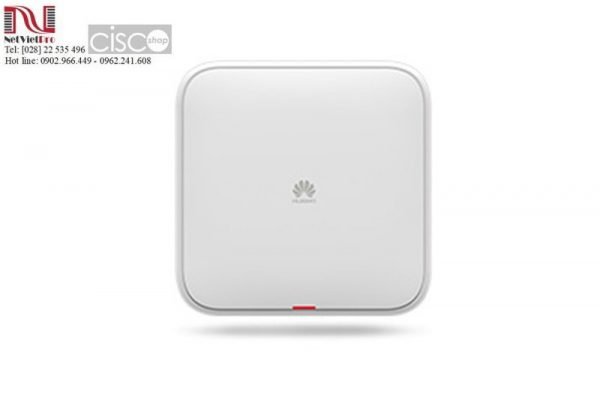

Huawei Indoor Access Point AP7060DN

Cung cấp thiết bị Huawei Indoor Access Points AP7060DN.
11ax, indoor, 2.4G 4×4 + 5G 8×8 dual bands, built-in antenna, 10GE+GE, USB, IoT slot, BLE.
Hàng chính hãng 100%, bảo hành 1 năm.

Mô tả

Mô tả

Mô tả tổng quan Huawei Indoor Access Point AP7060DN

The AP7060DN is a cutting-edge 802.11ax wireless access point (AP) with built-in omnidirectional antennas. The device rate can reach up to 5.95 Gbps. On the 2.4 GHz band, the AP7060DN supports 4×4 MIMO and four spatial streams, achieving a rate of 1.15 Gbps.

Huawei Indoor Access Point AP7060DN

Thông số kỹ thuật Huawei Indoor Access Point AP7060DN

AP7060DN Specification
Dimensions (H x W x D)	57 mm x 220 mm x 220 mm
Weight	1.8 kg
Interface type	1 x 10/100/1000M self-adaptive Ethernet interface (RJ45) 1 x 100/1000M/2.5G/5G/10G self-adaptive Ethernet interface (RJ45) 1 x Management console port (RJ45) 1 x USB interface
External IoT module	1 x External IoT module (supporting ZigBee and RFID)
Built-in Bluetooth	BLE5.0
LED indicator	Indicates the power-on, startup, running, alarm, and fault states of the system.
Power input	• DC: 42.5 V to 57 V • PoE power supply: In compliance with 802.3 at/bt.
PoE power supply mode	2.4GHz	5GHz	Maximum power consumption (excluding USB and IoT)
802.3bt(PoE++)	4×4	8×8	<30W
802.3at(PoE+)	3×3	6×6	<25.5W
NOTE The actual maximum power consumption depends on local laws and regulations.
Operating temperature	–10°C to +50°C
Storage temperature	–40°C to +70°C
Operating humidity	5% to 95% (non-condensing)
Dustproof and waterproof grade	IP41
Altitude	–60 m to +5000 m
Atmospheric pressure	53 kPa to 106 kPa
Antenna type	Built-in dual-band omnidirectional antennas
Antenna gain	2.4GHz: 4.6dBi 5GHz: 5.6dBi NOTE 1. The gains above are the single-antenna peak gains. 2. The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 4 dBi in 2.4 GHz or 2 dBi in 5 GHz.
Maximum number of SSIDs for each radio	≤ 16
Maximum number of users	≤ 512 NOTE The actual number of users varies according to the environment.
Maximum transmit power	2.4G: 24 dBm (combined power) 5G: 27 dBm (combined power) NOTE The actual transmit power depends on local laws and regulations.
Power increment	1 dBm
Maximum number of non–overlapping channels	2.4 GHz（2.412GHz～2.472GHz） l • 802.11b/g − 20MHz：3 l • 802.11n − 20MHz：3 − 40MHz：1 l • 802.11ax − 20MHz：3 − 40MHz：1 5 GHz（5.18GHz～5.825GHz） l • 802.11a − 20MHz：13 • 802.11n − 20MHz：13 − 40MHz：6 l • 802.11ac − 20MHz：13 − 40MHz：6 − 80MHz：3 − 160MHz：1 l • 802.11ax − 20MHz：13 − 40MHz：6 − 80MHz：3 − 160MHz：1 NOTE The table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping channels varies in different countries. For details, see the Country Codes & Channels Compliance
Safety standards	UL 60950-1 CAN/CSA 22.2 No.60950-1 IEC 60950-1 EN 60950-1 GB 4943 IEC 62368-1 EN 62368-1
Radio standards	ETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268
EMC standards	EN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 FCC Part 15 ICES-003 YD/T 1312.2-2004 ITU k.20 GB 9254 GB 17625.1 AS/NZS CISPR22 EN 55022 EN 55024 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2
IEEE standards	IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r
Security standards	802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s)
EMF CENELEC	EN 62311 CENELEC EN 50385 OET65 RSS-102 FCC Part1&2 FCC KDB Series
RoHS	Directive 2002/95/EC & 2011/65/EU
Reach	Regulation 1907/2006/EC
WEEE	Directive 2002/96/EC & 2012/19/EU
