Thiết bị Huawei Indoor Access Point AP6052DN

Huawei Indoor Access Point AP6052DN

Cung cấp thiết bị Huawei Indoor Access Points AP6052DN.
802.11ac Wave 2 AP, 4 x 4 MIMO, four spatial streams.
2.4G-to-5G switchover, Built-in antennas.
Hàng chính hãng 100%, bảo hành 1 năm.

Mô tả

Mô tả

Mô tả tổng quan Huawei Indoor Access Point AP6052DN

Huawei AP6052DN is the latest-generation technology-leading 802.11ac Wave 2 wireless access point (AP) that supports 4×4 MIMO four spatial streams, and 2.4G-to-5G switchover. In dual-5G mode, the device rate can reach up to 3.46 Gbit/s. The AP has built-in omnidirectional antennas and supports smooth evolution from 802.11n to 802.11ac.

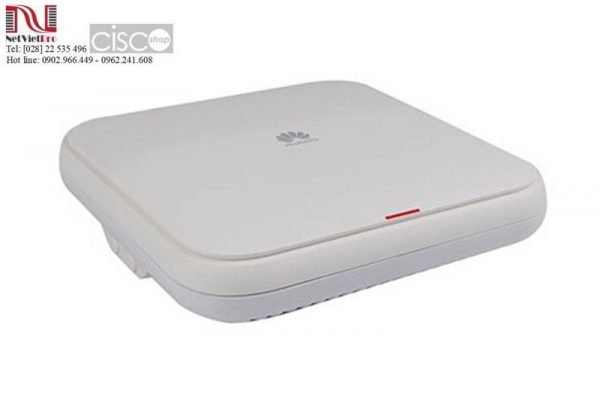

Huawei Indoor Access Point AP6052DN

Thông số kỹ thuật Huawei Indoor Access Point AP6052DN

AP6052DN Specification
Dimensions (H x W x D)	52 mm x 220 mm x 220 mm
Weight	1.66 kg
Interface type	GE port: 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45) 5/2.5GE/PoE_IN port: 100M/1000M/2.5G/5G port that connects to the wired Ethernet and supports PoE input. 1 x Management console port (RJ45) 1 x USB interface
Built-in Bluetooth	BLE4.1
LED indicator	Indicates the power-on, startup, running, alarm, and fault status of the system.
Power input	DC: 42.5 V to 57 V PoE power supply: in compliance with IEEE 802.3at/bt
Maximum power consumption	DC/802.3bt power supply: 32 W (excluding the output power of the USB port) 802.3at power supply: 25.5 W (The USB function is unavailable. The port rate of 5/2.5GE/PoE_IN port decreases to 2.5 Gbit/s.) NOTE The actual maximum power consumption depends on local laws and regulations. In 802.3at power supply mode, radio power is managed in self-adaptive mode.
Operating temperature	–10°C to +50°C
Storage temperature	–40°C to +70°C
Operating humidity	5% to 95% (non-condensing)
Dustproof and waterproof grade	IP41
Altitude	–60 m to +5000 m
Atmospheric pressure	53 kPa to 106 kPa
Antenna type	Built-in dual-band omnidirectional antennas
Antenna gain	2.4G/5G (switchable): 2 dBi/2.8 dBi 5G (non-switchable): 2.8 dBi
Maximum number of SSIDs for each radio	≤ 16
Maximum number of users	≤ 512 NOTE The actual number of users varies according to the environment.
Maximum transmit power	2.4G/5G (switchable): 26 dBm/21 dBm (combined power) 5G (non-switchable): 24 dBm (combined power) NOTE The actual transmit power depends on local laws and regulations.
Power increment	1 dBm
Receiver sensitivity	2.4 GHz 802.11b: –104 dBm @ 1 Mbit/s; –95 dBm@ 11 Mbit/s 2.4 GHz 802.11g: -96 dBm @ 6 Mbit/s; -77 dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20): -95 dBm @ MCS0; -75 dBm @ MCS31 2.4 GHz 802.11n (HT40): -92 dBm @ MCS0; -73 dBm @ MCS31 5 GHz 802.11a: -95 dBm @ 6 Mbit/s; -79 dBm @ 54 Mbit/s 5 GHz 802.11n (HT20): -94 dBm @ MCS0; -74 dBm @ MCS31 5 GHz 802.11n (HT40): -93 dBm @ MCS0; -71 dBm @ MCS31 5 GHz 802.11ac (VHT20): -94 dBm @ MCS0NSS1; -70 dBm @ MCS8NSS4 5 GHz 802.11ac (VHT40): -91 dBm @ MCS0NSS1; -67 dBm @ MCS9NSS4 5 GHz 802.11ac (VHT80): -88 dBm @ MCS0NSS1; -62 dBm @ MCS9NSS4 5 GHz 802.11ac (VHT160): -85 dBm @ MCS0NSS1; -62 dBm @ MCS9NSS2
Safety standards	UL 60950-1 CAN/CSA 22.2 No.60950-1 IEC 60950-1 EN 60950-1 GB 4943
Radio standards	ETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268
EMC standards	EN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 FCC Part 15 ICES-003 YD/T 1312.2-2004 ITU k.20 GB 9254 GB 17625.1 AS/NZS CISPR22 EN 55022 EN 55024 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2
IEEE standards	IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11i IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11s IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11r IEEE 802.11w IEEE 802.11ae IEEE 802.11aa IEEE 802.11-2012 and select amendments(selected feature coverage) IEEE 802.11-2016 and select amendments(selected feature coverage)
Security standards	802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s)
EMF	CENELEC EN 62311 CENELEC EN 50385 OET65 RSS-102 FCC Part1&2 FCC KDB series
RoHS	Directive 2002/95/EC & 2011/65/EU
REACH	Regulation 1907/2006/EC
WEEE	Directive 2002/96/EC & 2012/19/EU
