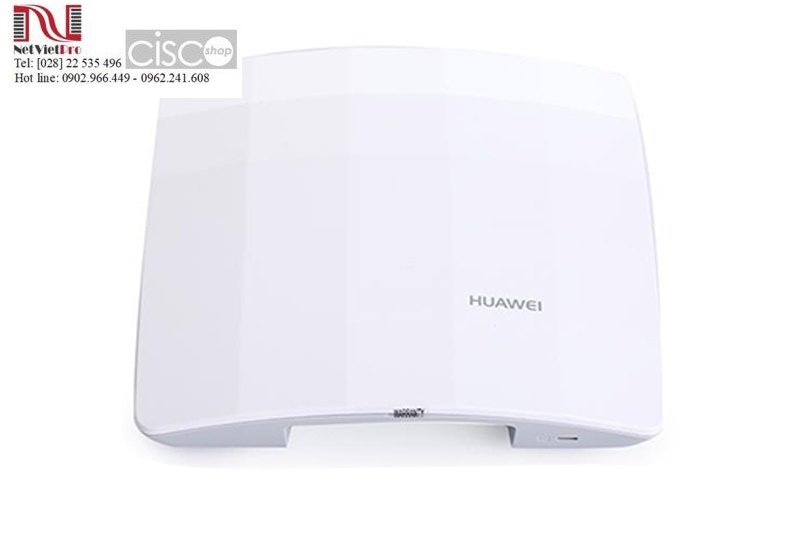

Huawei Indoor Access Point AP5010SN-GN-FAT-DC

AP5010SN-GN-FAT-DC Specifications

Technical

32 MB flash memory

Power

POE Power: -48V DC. PoE function complies with IEEE 802.3af and 802.3at

Note: Maximum power consumption depends on local laws and regulations

Environment

Radio

You can adjust the transmit power to the maximum of 20 dB in 1 dB steps

Note: Actual transmit power depends on local laws and regulations

·20 MHz: 3

802.11n

·20 MHz: 3

·40 MHz: 1

Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status

Spatial flow quantity

Modulation

Coding rate

Data rate

Guard Interval (GI) indicates the period in nanoseconds the radio listens for between packets

·-96 dBm @ 1 Mbit/s

·-91 dBm @ 2 Mbit/s

·-92 dBm @ 5.5 Mbit/s

·-88 dBm @ 11 Mbit/s

·-91 dBm @ 6 Mbit/s

·-90 dBm @ 9 Mbit/s

·-89 dBm @ 12 Mbit/s

·-86 dBm @ 18 Mbit/s

·-83 dBm @ 24 Mbit/s

·-80 dBm @ 36 Mbit/s

·-76 dBm @ 48 Mbit/s

·-74 dBm @ 54 Mbit/s

·-91 dBm @ MCS0

·-88 dBm @ MCS1

·-86 dBm @ MCS2

·-81 dBm @ MCS3

·-78 dBm @ MCS4

·-74 dBm @ MCS5

·-72 dBm @ MCS6

·-71 dBm @ MCS7

·-89 dBm @ MCS8

·-88 dBm @ MCS9

·-86 dBm @ MCS10

·-82 dBm @ MCS11

·-79 dBm @ MCS12

·-74 dBm @ MCS13

·-73 dBm @ MCS14

·-71 dBm @ MCS15

·-88 dBm @ MCS0

·-85 dBm @ MCS1

·-83 dBm @ MCS2

·-78 dBm @ MCS3

·-75 dBm @ MCS4

·-71 dBm @ MCS5

·-70 dBm @ MCS6

·-68 dBm @ MCS7

·-88 dBm @ MCS8

·-85 dBm @ MCS9

·-82 dBm @ MCS10

·-79 dBm @ MCS11

·-76 dBm @ MCS12

·-71 dBm @ MCS13

·-70 dBm @ MCS14

·-68 dBm @ MCS15
