Huawei Switches Series EH1BS9712E00

Cung cấp thiết bị Huawei Switches Series EH1BS9712E00.
S9712 Assembly Chassis, 12 Slots.
Hàng chính hãng 100%, bảo hành 1 năm.

Mô tả

Mô tả

Tổng quan về Huawei Switches Series EH1BS9712E00

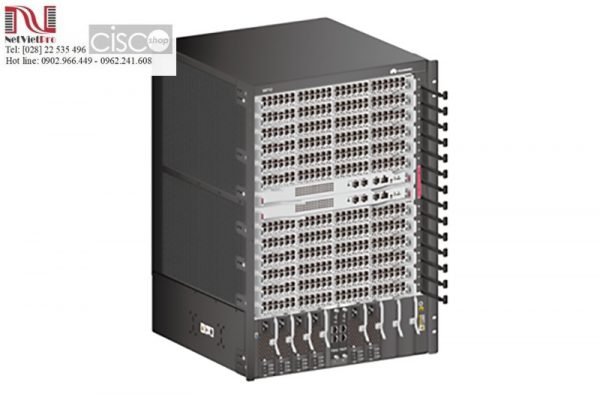

EH1BS9712E00 is the Huawei S9712 Switch assembly chassis, including 12 slots. The S9700 series terabit routing switches are high-end switches designed for next-generation campus networks and data centers to implement service aggregation.

Huawei Switches Series EH1BS9712E00

Thông số kỹ thuật Huawei Switches Series EH1BS9712E00

Product Code	EH1BS9712E00
Packet Forwarding Rates	3,840 Mpps or 6,480 Mpps
Switching Capacity	8.64 Tbit/s or 18.56 Tbit/s
MPU Slots	2
LPU slots	12
Service Slots	12
Fan slots	4
Power slots	6
Equipment Power Supply Capability	6,600W
Maximum power consumption (fully loaded)	4500 W
Operating Voltage	DC: –40V to –72V AC: 90V to 290V
Dimensions (W x D x H, excluding rack-mounting brackets)	With cable management frames: 442 mm x 585 mm x 663.95 mm (17.4 in. x 23.0 in. x 26.1 in. (15 U)) Without cable management frames: 442 mm x 489 mm x 663.95 mm (17.4 in. x 19.3 in. x 26.1 in. (15 U))
Weight (empty/fully loaded)	37 kg/70 kg (81.6 lb/154.3 lb)
