Huawei Switches Series S5730S-48C-PWR-EI

Huawei Switches Series S5730S-68C-PWR-EI

Cung cấp thiết bị Huawei Switches Series S5730S-68C-PWR-EI.
48 x Ethernet 10/100/1,000 ports,PoE, 8 x 10 Gig SFP+.
Hàng chính hãng 100%, bảo hành 1 năm.

Mô tả

Mô tả

Tổng quan về Huawei Switches Series S5730S-68C-PWR-EI

S5730S-68C-EI-AC with 48 PoE+ 10/100/1000BASE-T ports, is one of the Huawei S5700 series switches. Huawei S5700 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions.

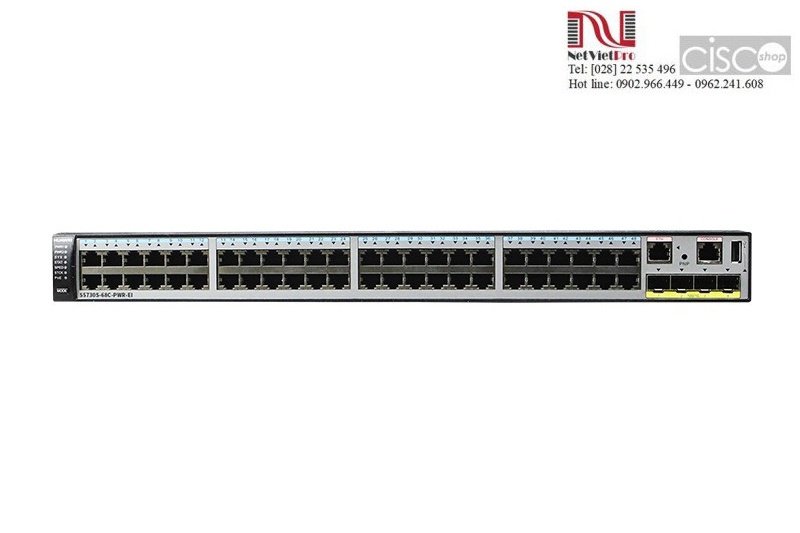

Huawei Switches Series S5730S-68C-PWR-EI

It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in extensive enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.

Thông số kỹ thuật Huawei Switches Series S5730S-68C-PWR-EI

Item	S5730S-68C-PWR-EI
Fixed ports	48 PoE+ 10/100/1000BASE-T ports, 4 10GE SFP+ ports
Extended slot	1 extended slot
Power supply surge protection	Using 500 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 83.2 W (without card) 100% PoE loads: 967 W (system power consumption: 227.8 W, PoE: 739.2 W, without card)
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption	50.1 W (without card)
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The operating temperature of the switch is 0°C to 40°C (32°F to 104°F) when it uses QSFP+ optical modules with 10 km or longer transmission distances.
Short-term operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 57.4 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
