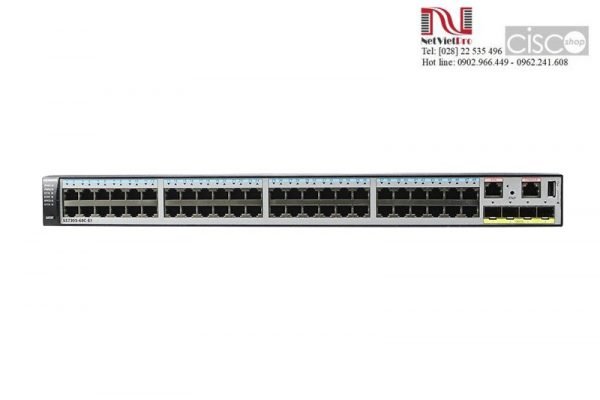

Huawei Switches Series S5730S-68C-EI-AC

Cung cấp thiết bị Huawei Switches Series S5730S-68C-EI-AC.
48 x Ethernet 10/100/1000 ports, 8 x 10 Gig SFP+, with AC power supply.
Hàng chính hãng 100%, bảo hành 1 năm.

Mô tả

Mô tả

Tổng quan về Huawei Switches Series S5730S-68C-EI-AC

S5730S-68C-EI-AC with 24 PoE+ 10/100/1000BASE-T ports, is one of the Huawei S5700 series switches. Huawei S5700 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions.

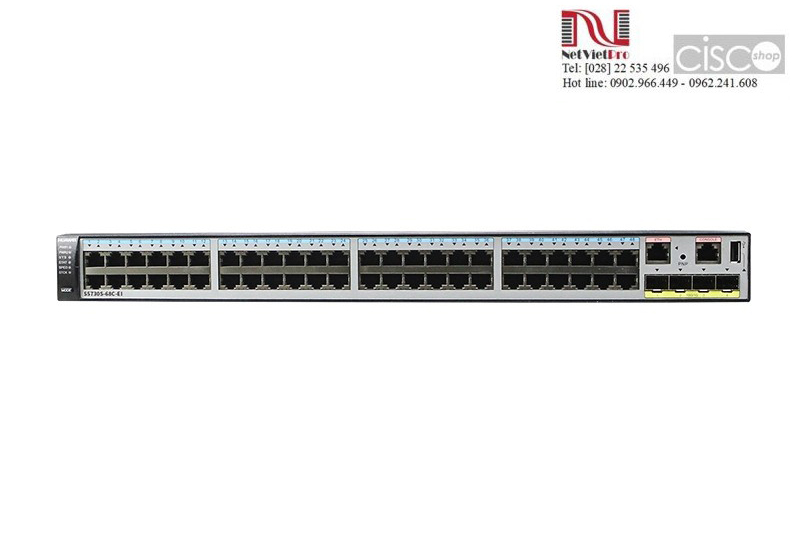

Huawei Switches Series S5730S-68C-EI-AC

It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in extensive enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.

Thông số kỹ thuật Huawei Switches Series S5730S-68C-EI-AC

Item		S5730S-68C-EI-AC
Fixed port	GE Base-T port	48
	GE SFP port	NA
	10GE port	4
Forwarding performance		420 Mpps
Switching capacity		680 Gbps
Management port	Console port (RJ45)	Supported
Management port	USB port	USB 2.0
CPU	Frequency	1000 MHz
CPU	Core	4
Storage	Memory (RAM)	1 GB
Storage	Flash memory	Hardware: 512MB, of which 306MB is available for users
Power supply system	Power supply type	Built-in AC
	Rated voltage rang	100 V AC to 240V AC, 50/60 Hz
	Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
	Maximum voltage range	High-voltage DC input: 190V DC to 290 V DC (meeting 240 V highvoltage DC certification)
	Maximum input current	6 A
	Maximum power consumption of the device	65.4 W (without card)
	Power consumption in the case of 30% traffic load1	42.3 WW
	Power consumption in the case of 100% traffic load1	38 W
Reliability	MTBF (year)	46.53 years
	MTTR (hour)	2 hours
	Availability	> 0.99999
Physical specifications	Dimensions (H x W x D)	44.4 mm x 442.0 mm x 420.0 mm
	Chassis height	1 U
	Chassis weight (including packaging)	8.5 kg (18.74 lb)
