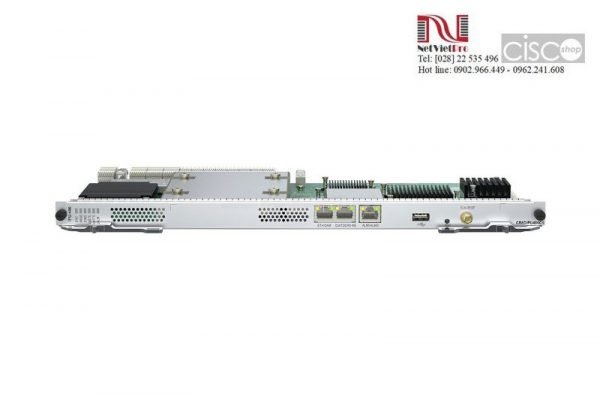

Huawei CR8DIPU480C1 NetEngine 8000 Universal Series Routers

Cung cấp thiết bị Huawei CR8DIPU480C1 NetEngine 8000 Universal Series Routers.
M8 Integrated Network Processing Unit (IPU-480).
Hàng chính hãng 100%, bảo hành 1 năm.

Mô tả

Mô tả

Tổng quan về Huawei CR8DIPU480C1 NetEngine 8000 Universal Series Routers

CR5D00E2NC76 Integrated Network Processing Unit (IPU) is responsible for the control plane and data plane functions of the entire Network Element (NE).

Huawei CR8DIPU480C1 NetEngine 8000 Universal Series Routers

CR8DIPU480C1 comes with original box, if purchase together with router, it will be will inserted into the router by default when delivery, to economical volume weight; If need delivery separately with original box, please contact Thunder-link.com sales team in advance.

Thông số kỹ thuật Huawei CR8DIPU480C1 NetEngine 8000 Universal Series Routers

Memory capacity of IPU				8GB
Flash				64MB
CF Card/SSD				4G NAND FLASH
RIP Routing Quantity				120K
OSPF Routing Quantity				1M
ISIS Routing Quantity				1240K
BGP Routing Quantity				10M
IPv4/IPv6 VRF Quantity				4K/4K
IPv4/IPv6 FIB				4M/2M
Typical power consumption				113.3 W
Typical heat dissipation				367.7 BTU/hour
Ambient temperature				Long-term:–40°C to +65°C (-40°F to 149°F), lowest temperature for startup: –20°C (–4°F)
SDRAM				8GB
Reliability and availability				Hot swapping and 1:1 backup
Physical specifications
Dimensions(mm)				22.4 (H) x 388.4 (W) x 209.3(D)
Weight(kg)				2.3
